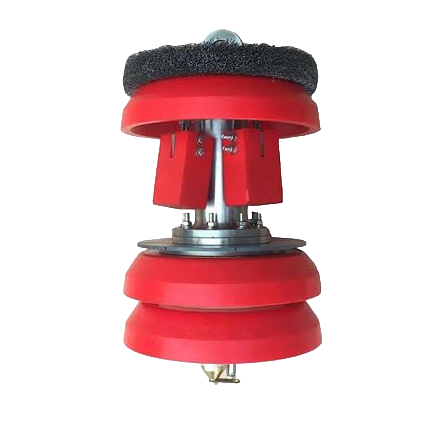

SCC Scraper Pig (Cup Type)
Scraper pigs with cup type sealing elements combine scraping blades with polyurethane sealing cups on a steel mandrel body. They are commonly used for pipeline cleaning where both a strong seal and wall scraping action are needed. The cups drive the pig forward while the blades loosen and remove buildup from the pipe wall.
Available options and configurations include different cup profiles and hardness grades, blade or brush combinations, bypass ports, magnets, transmitter or pinger cavities, and custom diameters or lengths to suit specific pigging requirements.

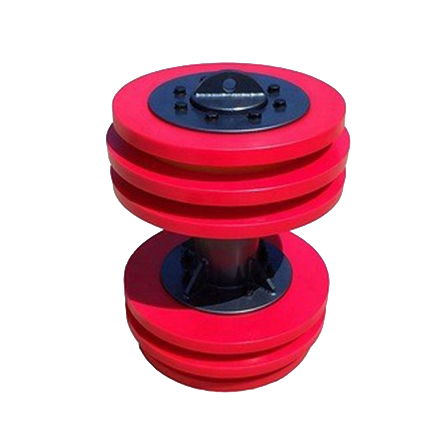

SCD Scraper Pig (Disc Type)
Scraper pigs with disc type sealing elements combine scraping blades with polyurethane sealing and guiding discs on a steel mandrel body. They are primarily used for pipeline cleaning and deposit removal in lines that need stable centering and consistent wall contact. The disc arrangement supports the pig through bends, valves, and fittings while the blades clear the pipe wall.
Optional configurations include sealing and guiding disc combinations, blade or brush combinations, bypass ports, magnets, transmitter or pinger cavities, and custom diameters or lengths to suit specific pigging requirements.
